Cable and fiber fit
Confirm drop-cable or indoor-cable construction, fiber count, cable entry, sheath diameter, strength-member handling, splice method, and reserve length.
Focused product range
Fiber terminal boxes for clean end-user connection.
Terminal boxes are selected from the cable type, fiber count, splice need, adapter and polish interface, outlet position, mounting surface, reserve storage, bend control, cable exit, user access, and project appearance.
System role
Subscriber and indoor fiber termination for FTTH, apartments, offices, desktop outlets, wall outlets, and protected handover points.
- Published models
- 21
- Buyer route
- Distributor / Project / OEM
- Next step
- Configuration review
Available directions
Fiber Optic Terminal Box & FTTH Outlet
Fiber / Terminal Outlet
2/4-Core Compact FTTH Outlet - SP-F301 A/B
SP-F301
Fiber / Terminal Outlet
1-Core FTTH Terminal Box for SC Simplex - SP-F302
SP-F302
Fiber / Terminal Outlet
SP-F303 Sliding-Cover Fiber Terminal Box
SP-F303
Fiber / Terminal Outlet
SP-F304 Two-Core Fiber Terminal Box
SP-F304
Fiber / Terminal Outlet
SP-F306 Screw-Fastened Fiber Terminal Box
SP-F306
Fiber / Terminal Outlet
SP-F307 Four-Core Fiber Terminal Box
SP-F307
Fiber / Terminal Outlet
SP-F308 Fiber Optic Terminal Box - 4 Core
SP-F308
Fiber / Terminal Outlet
SP-F309 Fiber Optic Terminal Box - 4 Core
SP-F309
Fiber / Terminal Outlet
SP-F310 Fiber Optic Terminal Box - 8 Core
SP-F310
Fiber / Terminal Outlet
SP-F311-2 Fiber Optic Terminal Box - Core
SP-F311-2
Fiber / Terminal Outlet
SP-F311-4 Fiber Optic Terminal Box - Core
SP-F311-4
Fiber / Terminal Outlet
SP-F311-6 Fiber Optic Terminal Box - Core
SP-F311-6
Fiber / Terminal Outlet
SP-F312 Fiber Optic Terminal Box
SP-F312
Fiber / Terminal Outlet
SP-F313-6 Fiber Optic Terminal Box - Core
SP-F313-6
Fiber / Terminal Outlet
SP-F314-12 Fiber Optic Terminal Box - Core
SP-F314-12
Fiber / Terminal Outlet
SP-F315-12 Fiber Optic Terminal Box - Core
SP-F315-12
Fiber / Terminal Outlet
SP-F316-24 Fiber Optic Terminal Box - Core
SP-F316-24
Fiber / Terminal Outlet
SP-F317-12 Fiber Optic Terminal Box - Core
SP-F317-12
Fiber / Terminal Outlet
SP-F318-24 Fiber Optic Terminal Box - Core
SP-F318-24
Fiber / Terminal Outlet
SP-N304-B-86 Fiber Terminal Outlet Box
SP-N304-B-86
Fiber / Terminal Outlet
SP-N304-D Fiber Optic Terminal Box
SP-N304-DPublished model index
Compare the published configurations before sending an RFQ.
These are the catalogue fields currently published for each model. Confirm the exact configuration, documents, and availability with SUNPU before placing an order.

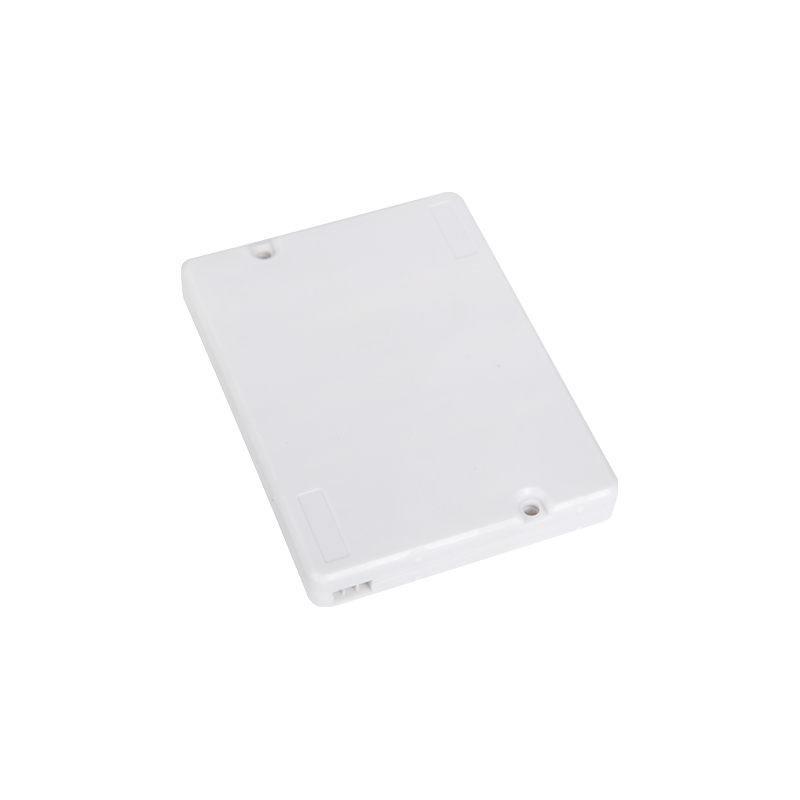

SP-F301
2/4-Core Compact FTTH Outlet - SP-F301 A/B
- Dimensions
- A: 94 × 45 × 11 mm; B: 94 × 68 × 11 mm
- Adapter / splitter configuration
- A: 2-core FTTH outlet; B: 4-core FTTH outlet
1-Core FTTH Terminal Box for SC Simplex - SP-F302
- Dimensions
- 93 × 83 × 29.5 mm
- Adapter / splitter configuration
- 1-core FTTH box; suitable for 1 SC simplex adapter
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

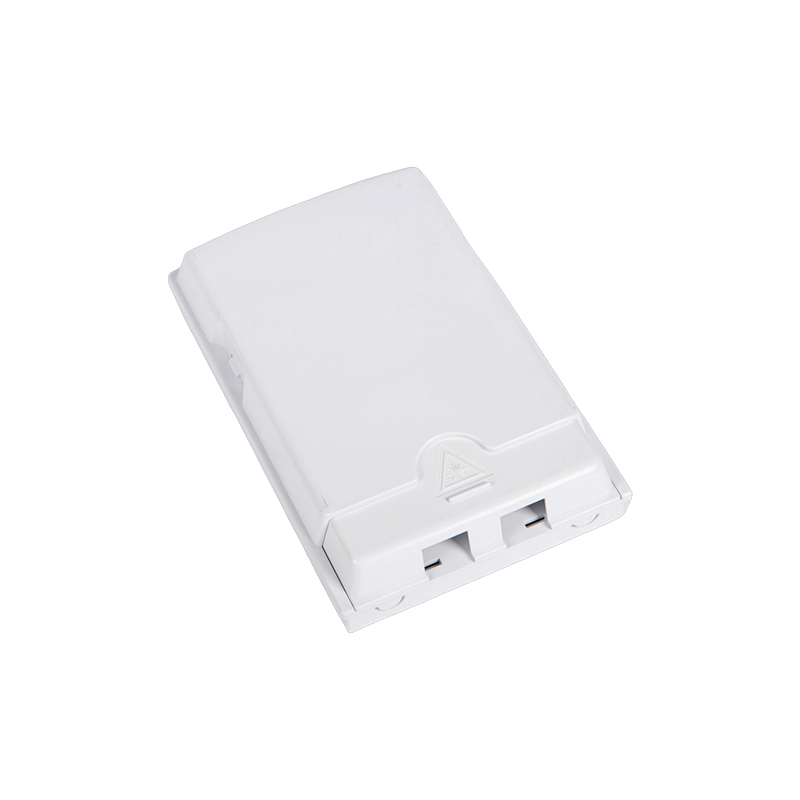

SP-F303 Sliding-Cover Fiber Terminal Box
- Dimensions
- 130 × 86 × 26 mm
- Adapter / splitter configuration
- 2-core FTTH box
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

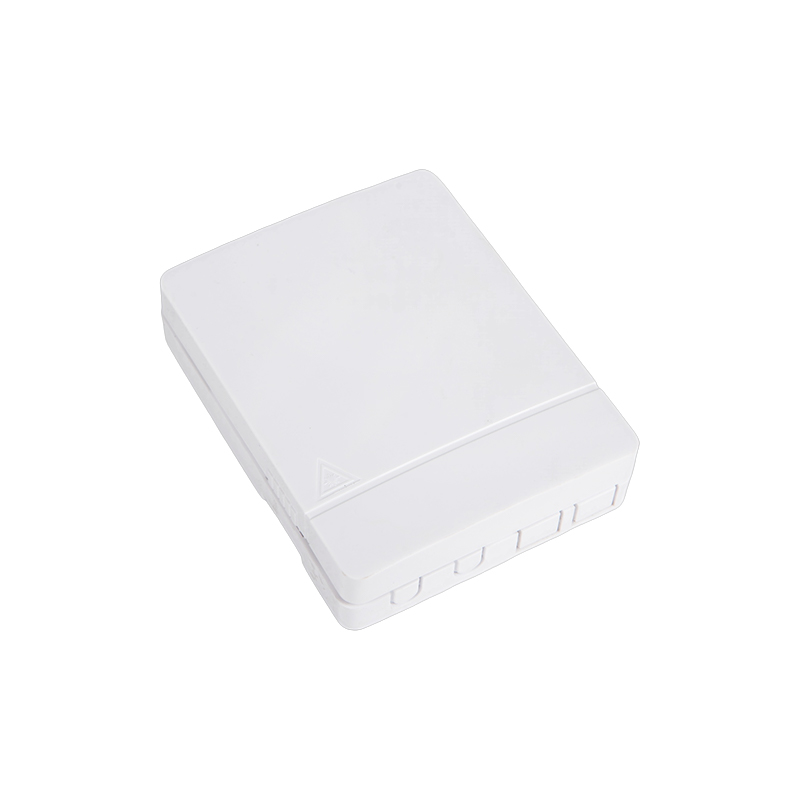

SP-F304 Two-Core Fiber Terminal Box
- Dimensions
- 105 × 83 × 24.5 mm
- Adapter / splitter configuration
- 2-core FTTH box
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

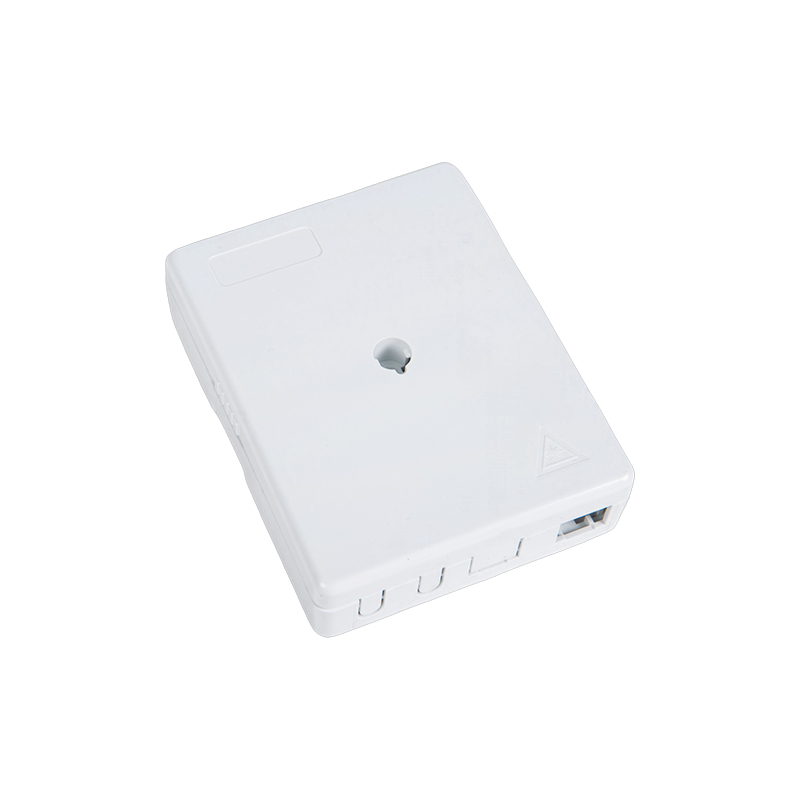

SP-F306 Screw-Fastened Fiber Terminal Box
- Dimensions
- 102 × 79 × 25 mm
- Adapter / splitter configuration
- 2-core FTTH box
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

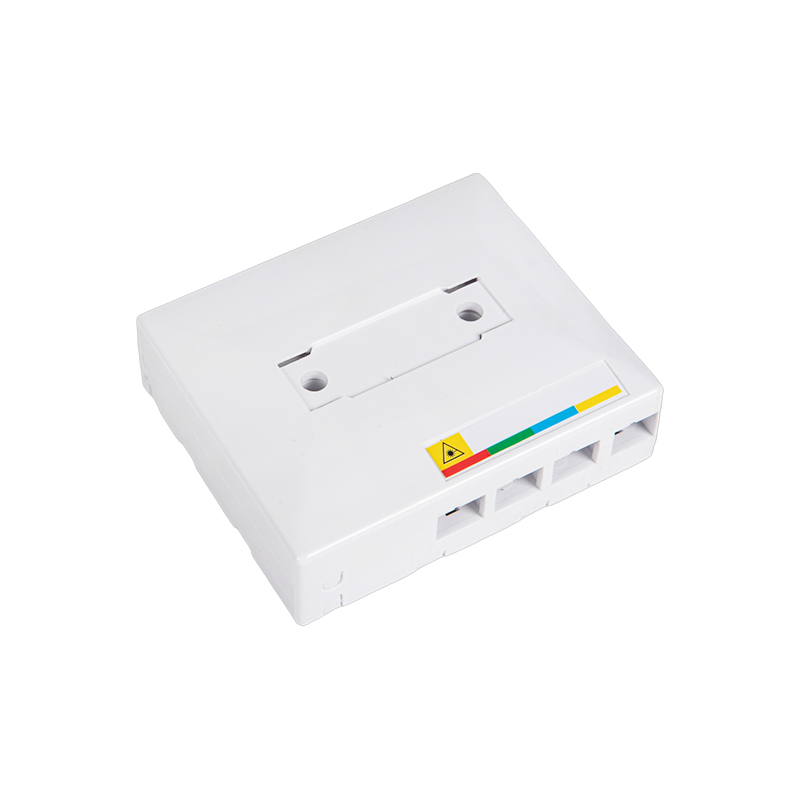

SP-F307 Four-Core Fiber Terminal Box
- Dimensions
- 100 × 84 × 30 mm
- Adapter / splitter configuration
- 4-core FTTH box
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

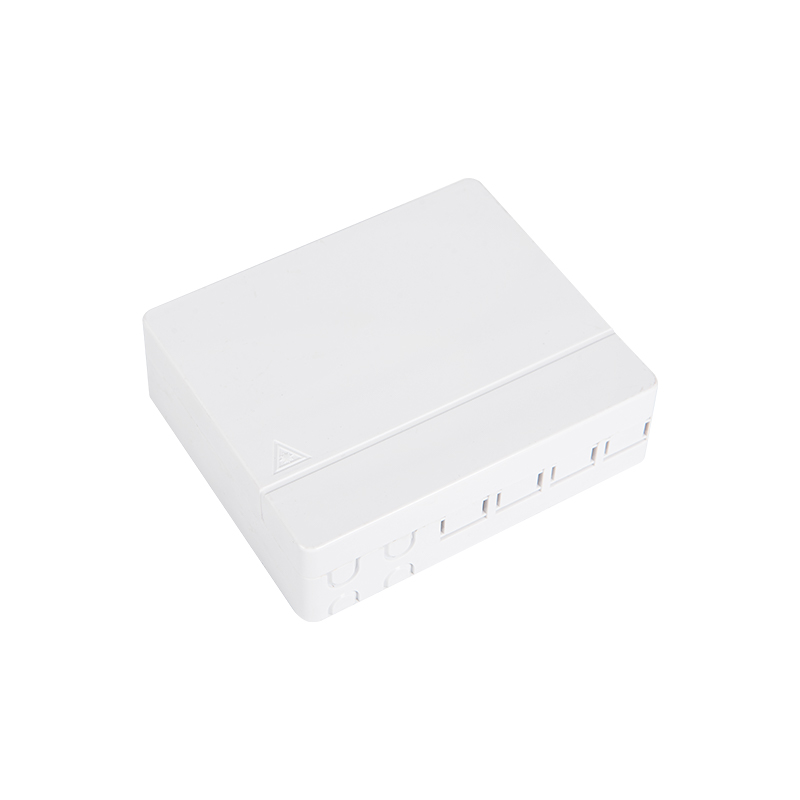

SP-F308 Fiber Optic Terminal Box - 4 Core
- Dimensions
- 100 × 84 × 29 mm
- Adapter / splitter configuration
- 4-core FTTH box
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

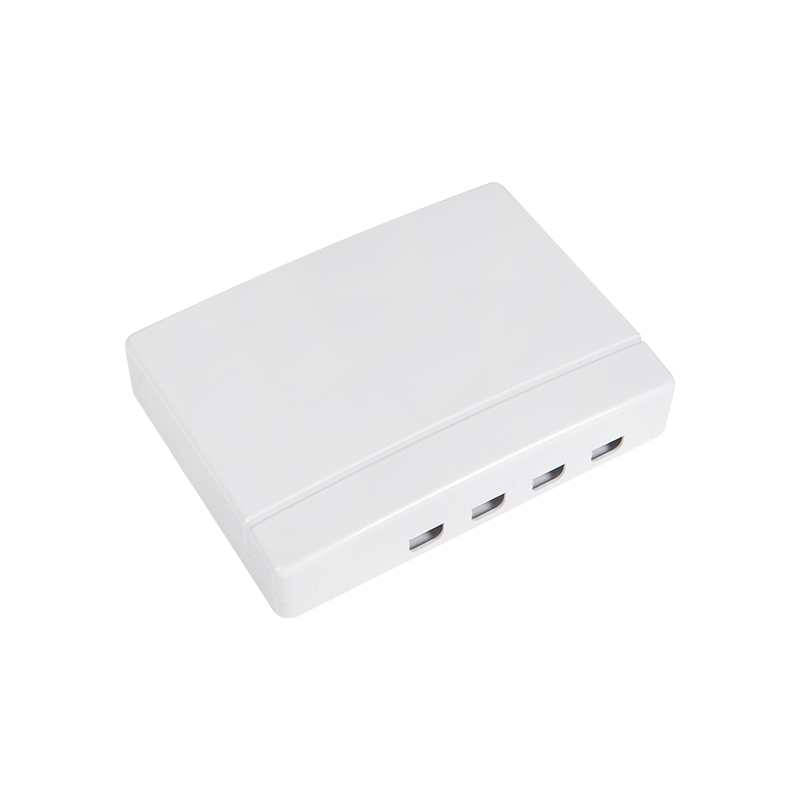

SP-F309 Fiber Optic Terminal Box - 4 Core
- Dimensions
- 149 × 117 × 30 mm
- Adapter / splitter configuration
- 4-core FTTH box
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

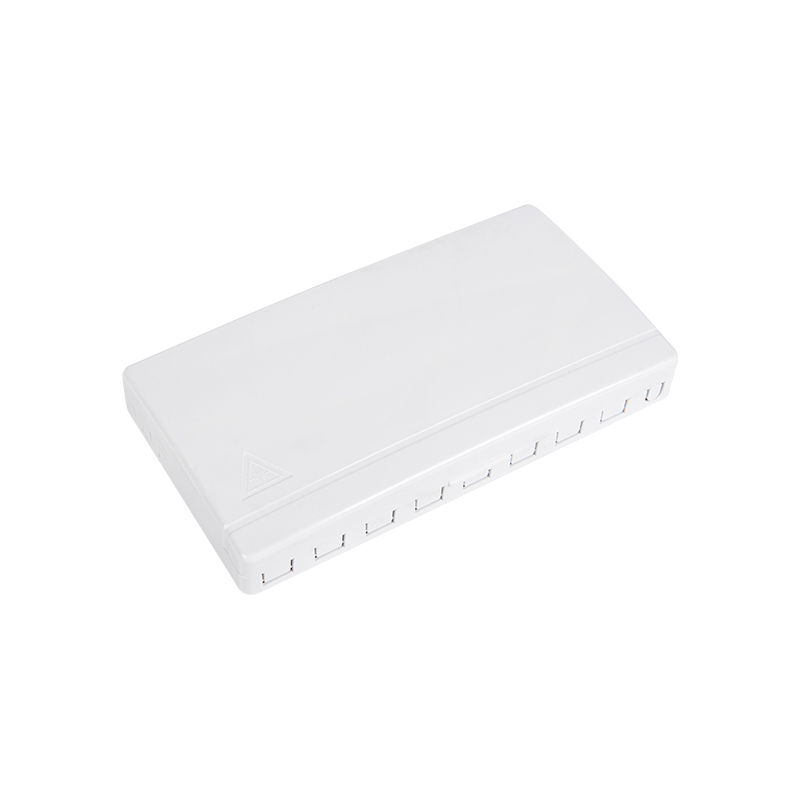

SP-F310 Fiber Optic Terminal Box - 8 Core
- Dimensions
- 205 × 118 × 28.5 mm
- Adapter / splitter configuration
- 8-core FTTH box
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

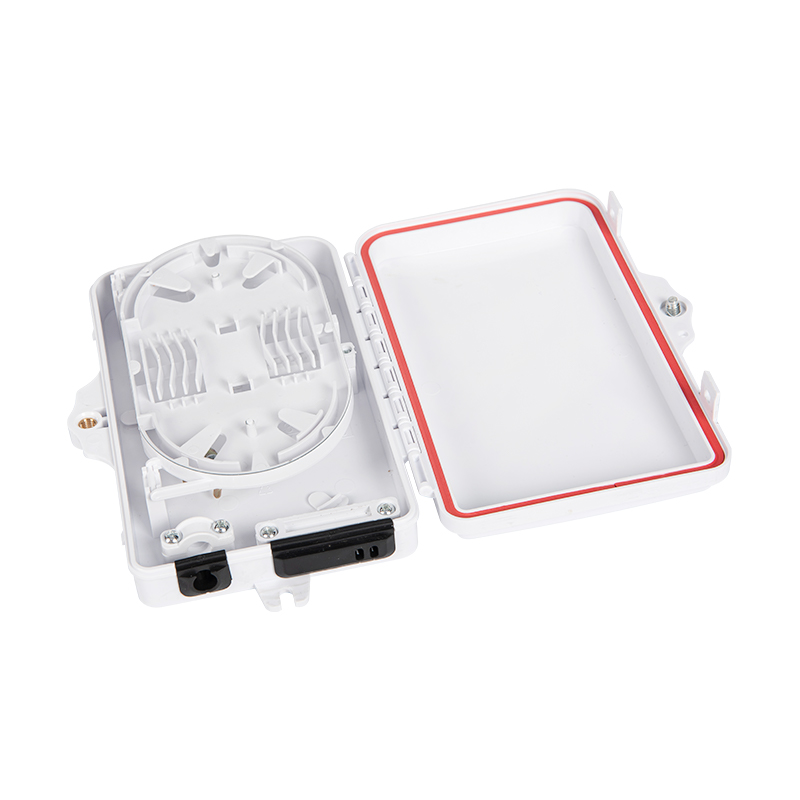

SP-F311-2 Fiber Optic Terminal Box - Core
- Dimensions
- 205 × 113 × 40 mm
- Adapter / splitter configuration
- 2-core configuration from the 2/4/6-core FTTH box family
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

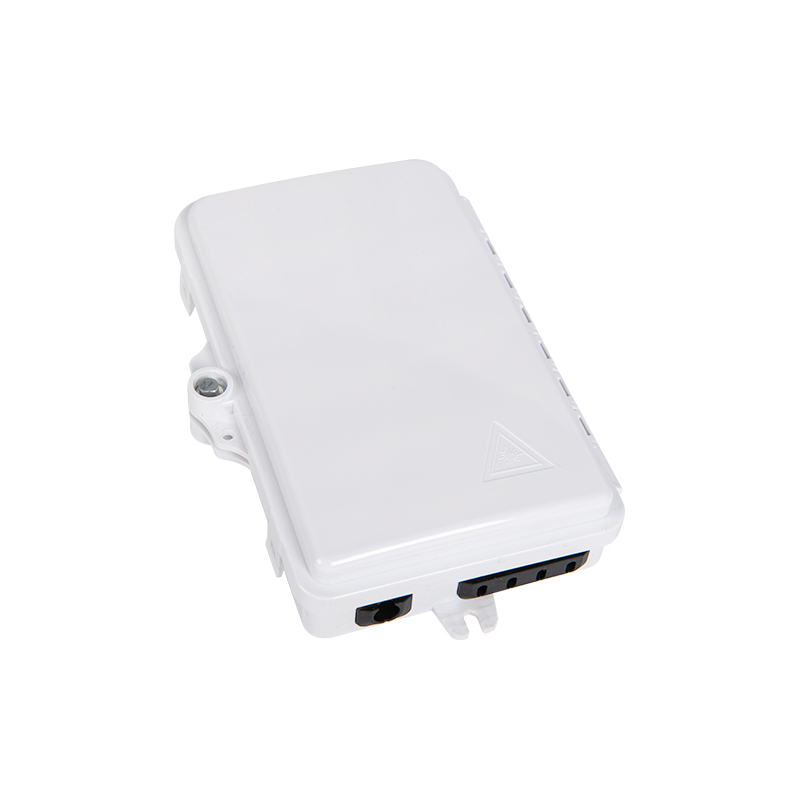

SP-F311-4 Fiber Optic Terminal Box - Core
- Dimensions
- 205 × 113 × 40 mm
- Adapter / splitter configuration
- 4-core configuration from the 2/4/6-core FTTH box family
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

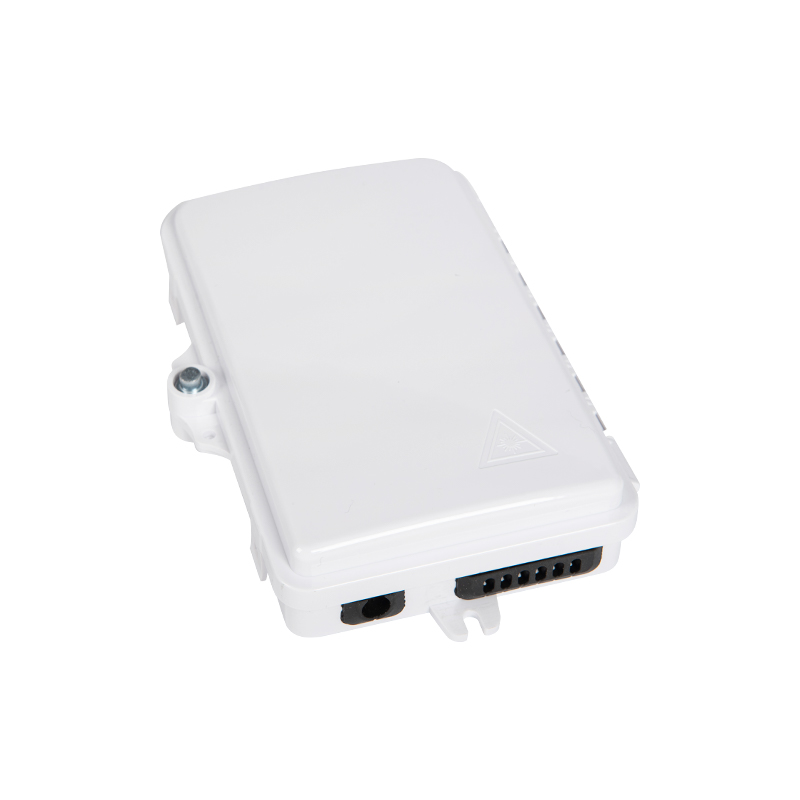

SP-F311-6 Fiber Optic Terminal Box - Core
- Dimensions
- 205 × 113 × 40 mm
- Adapter / splitter configuration
- 6-core configuration from the 2/4/6-core FTTH box family
- Published adapter types
- SC / LC / FC; select the exact adapter plate
- Cable compatibility
- 3.0 × 2.0 mm drop cable or indoor cable

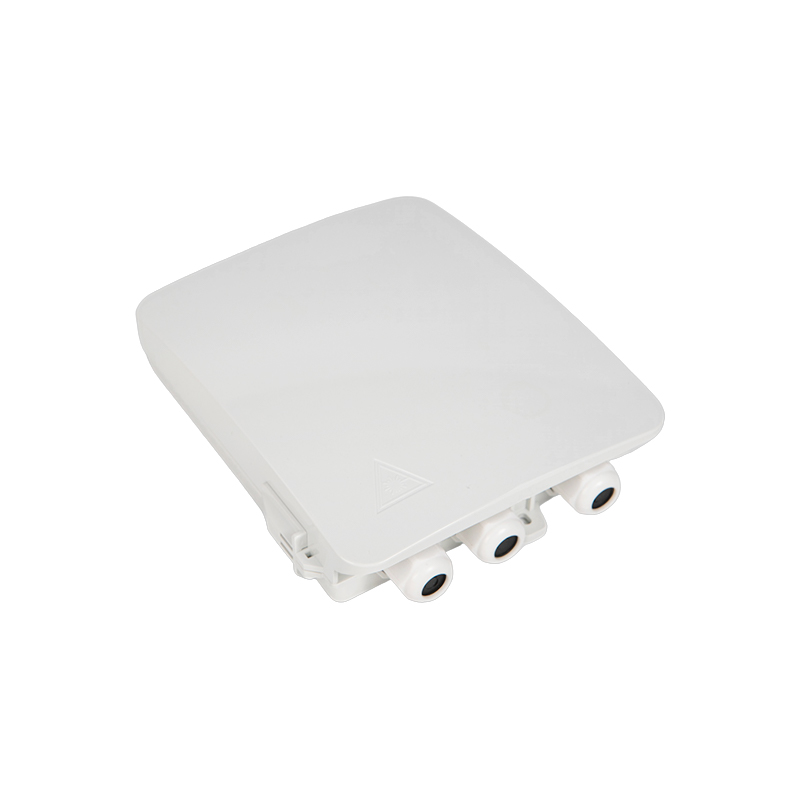

SP-F312 Fiber Optic Terminal Box
- Dimensions
- 199 × 160 × 46 mm
- Adapter / splitter configuration
- 8-core FTTH box; SC adapter type

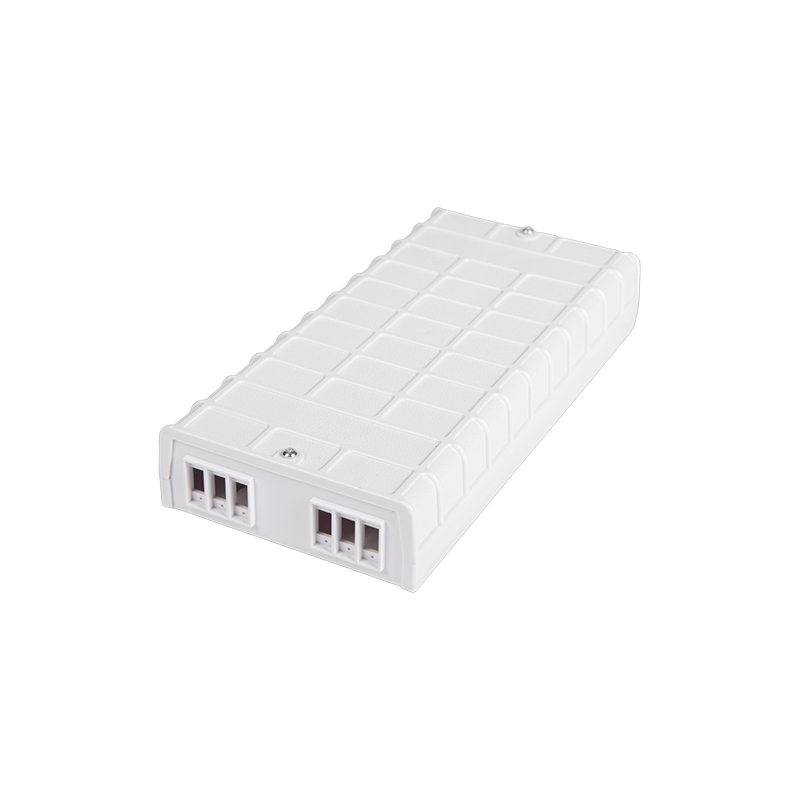

SP-F313-6 Fiber Optic Terminal Box - Core
- Dimensions
- 280 × 127 × 44 mm
- Housing material
- Plastic; resin grade not specified
- Adapter / splitter configuration
- Front panel for 6 SC simplex adapters

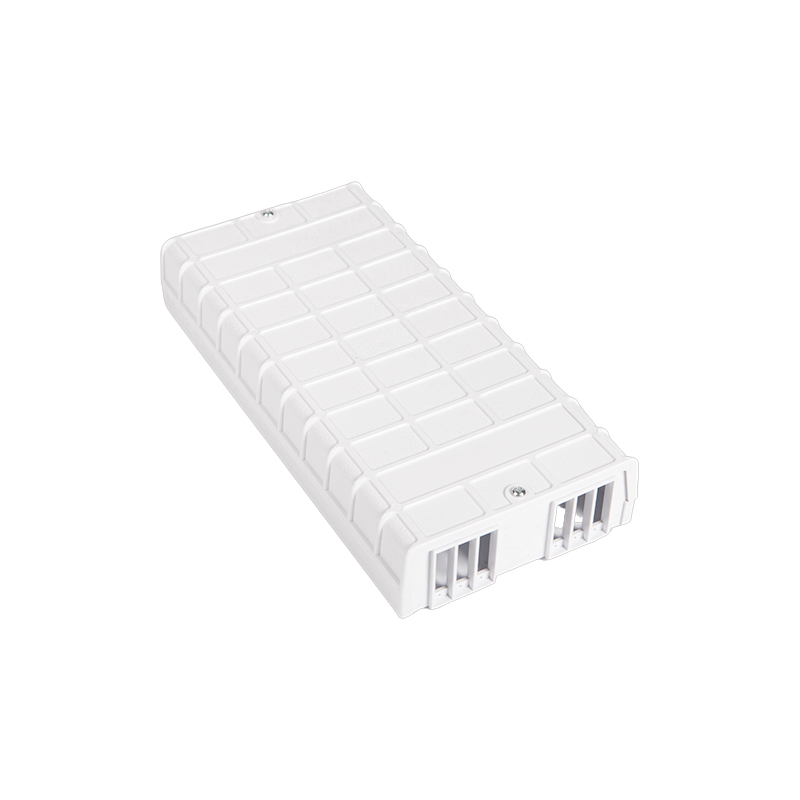

SP-F314-12 Fiber Optic Terminal Box - Core
- Dimensions
- 280 × 127 × 44 mm
- Housing material
- Plastic; resin grade not specified
- Adapter / splitter configuration
- Front panel for 6 SC duplex adapters

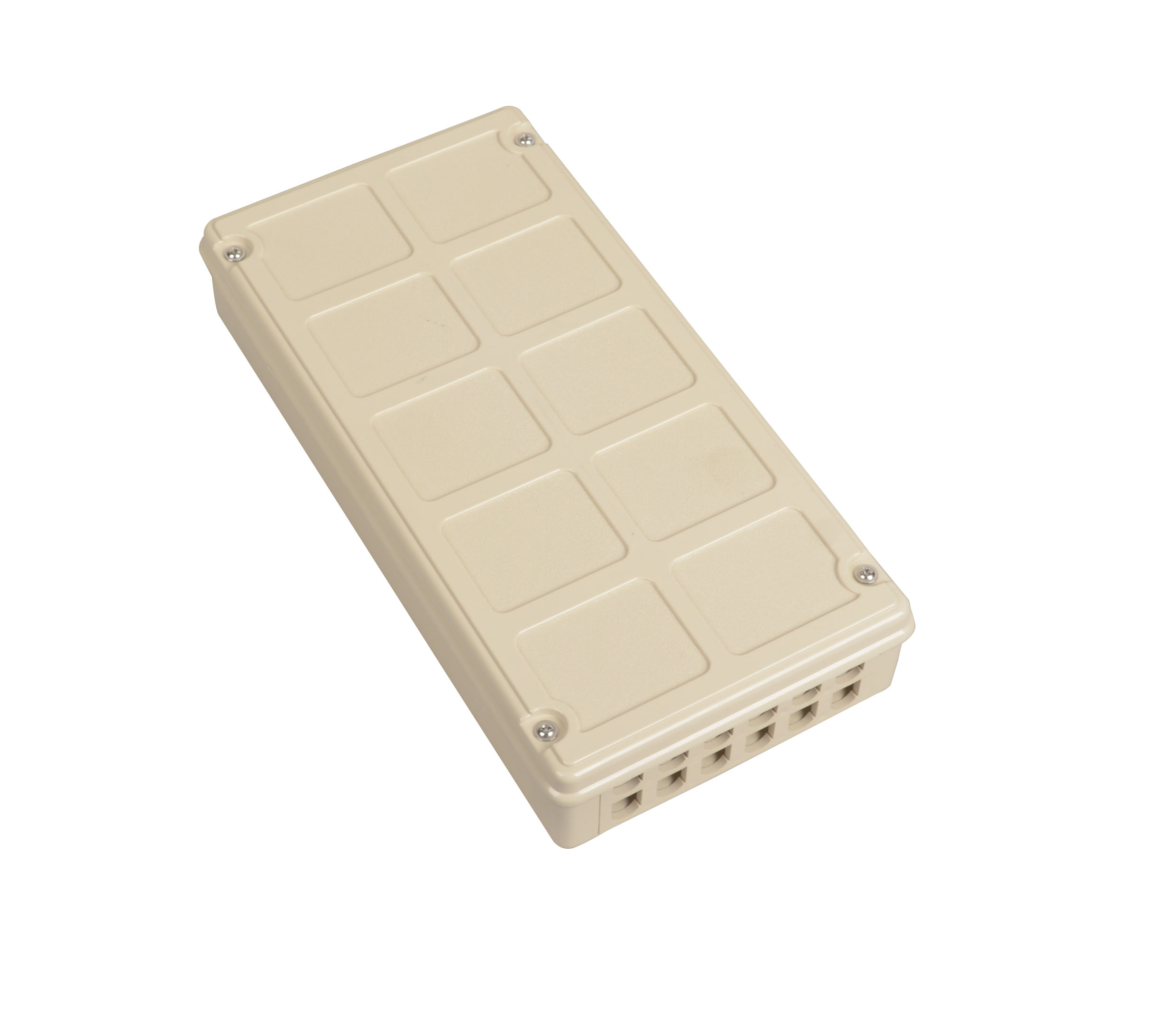

SP-F315-12 Fiber Optic Terminal Box - Core
- Dimensions
- 300 × 150 × 55 mm
- Housing material
- Plastic; resin grade not specified
- Adapter / splitter configuration
- 12 SC simplex or 12 ST adapter positions, depending on A/B front panel

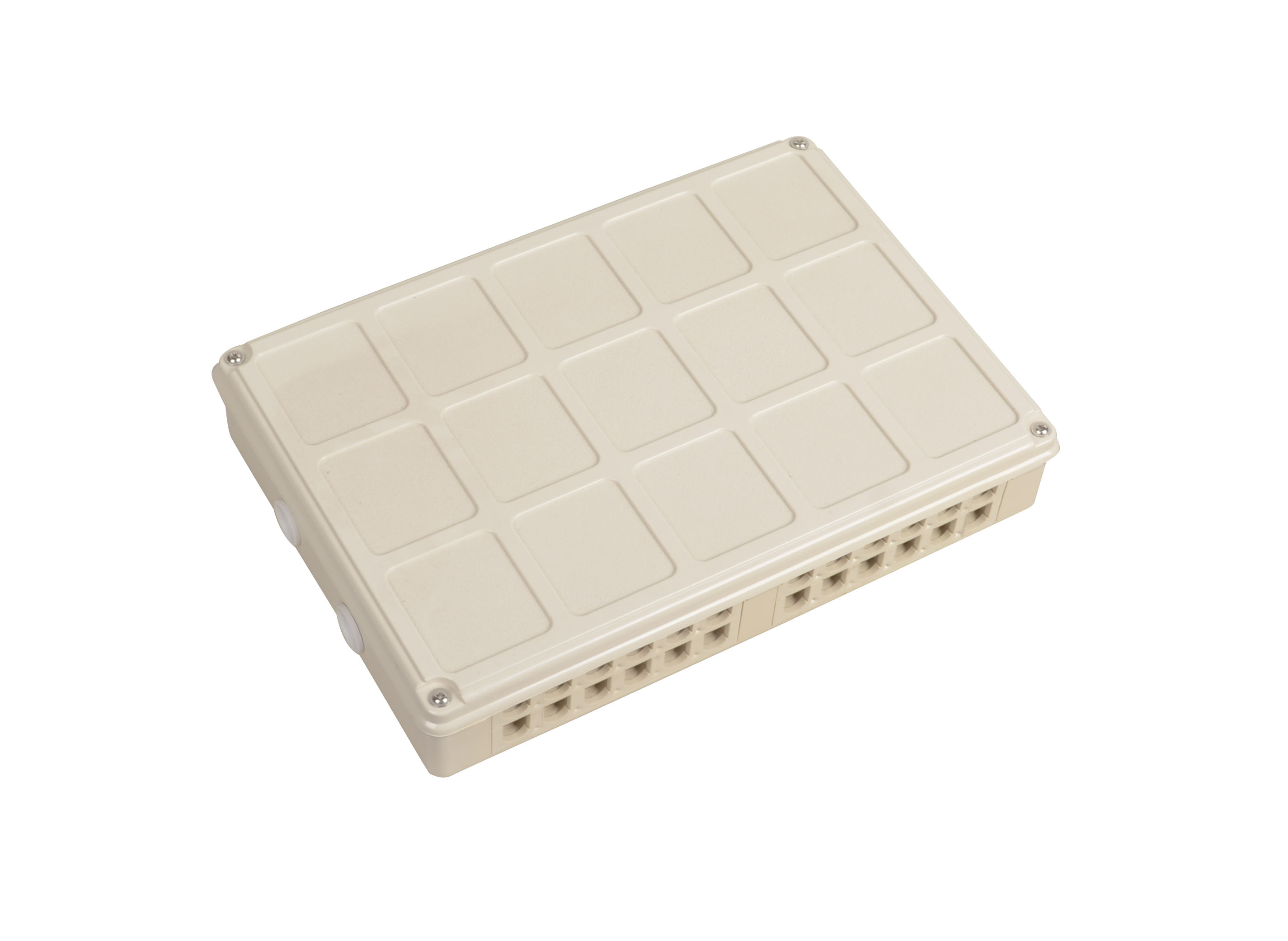

SP-F316-24 Fiber Optic Terminal Box - Core
- Dimensions
- 300 × 210 × 55 mm
- Housing material
- Plastic; resin grade not specified
- Adapter / splitter configuration
- 24 SC simplex or 24 ST adapter positions, depending on A/B front panel

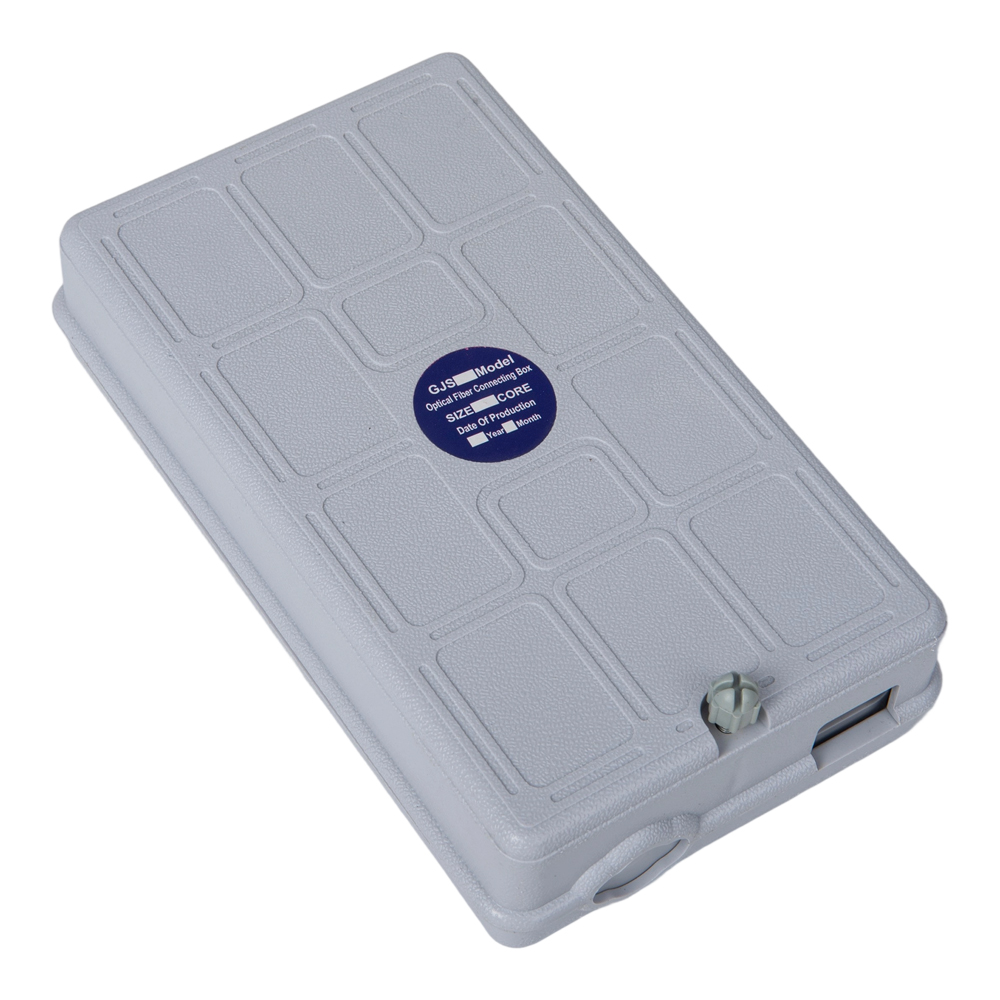

SP-F317-12 Fiber Optic Terminal Box - Core
- Dimensions
- 205 × 115 × 50 mm
- Adapter / splitter configuration
- 12-core version with 1 × 12C splice tray
- Published colour options
- White or light grey

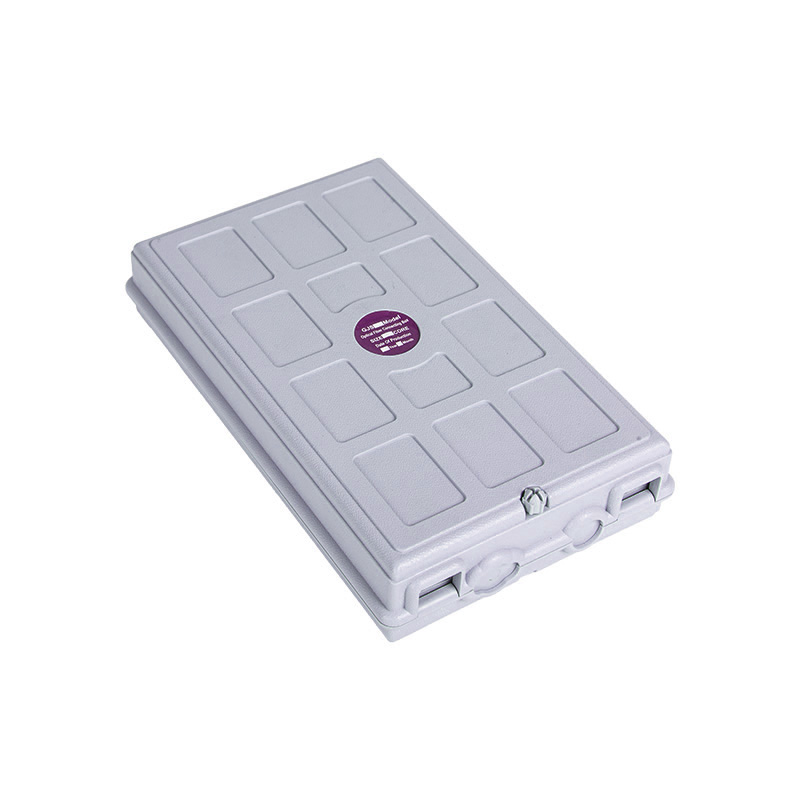

SP-F318-24 Fiber Optic Terminal Box - Core
- Dimensions
- 265 × 155 × 56.5 mm
- Adapter / splitter configuration
- 24-core version with 1 × 24C splice tray
- Published colour options
- White or light grey

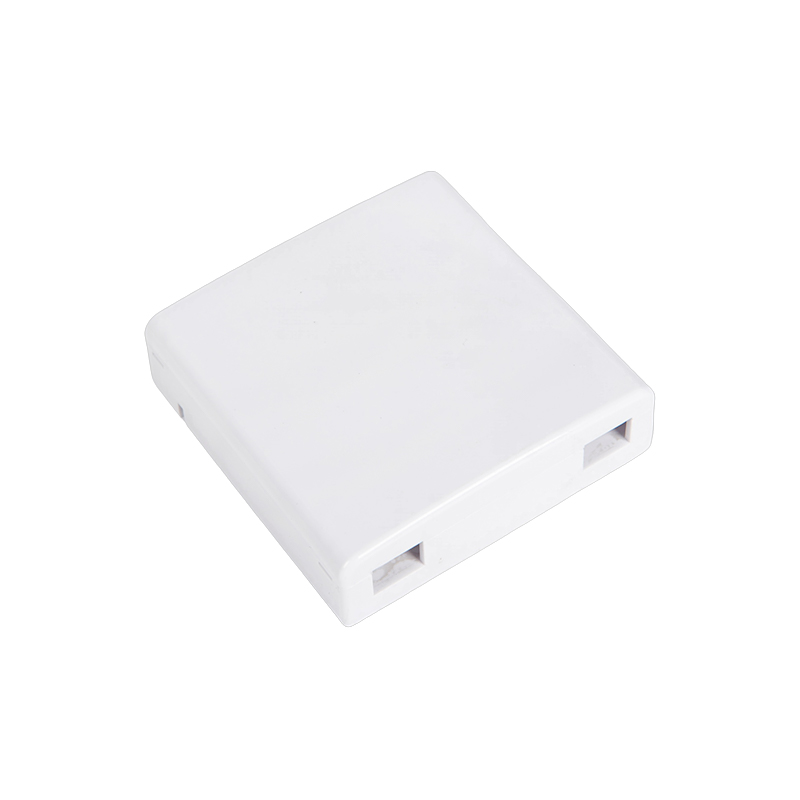

SP-N304-B-86 Fiber Terminal Outlet Box
- Configuration review
- Confirm fiber capacity, cable entry count and diameter, tray arrangement, adapter or splitter loading, sealing method, and installation environment for the exact model
- Dimensions and performance
- Confirm the final mechanical dimensions, material, ingress protection, included accessories, and available test documents against the quoted model

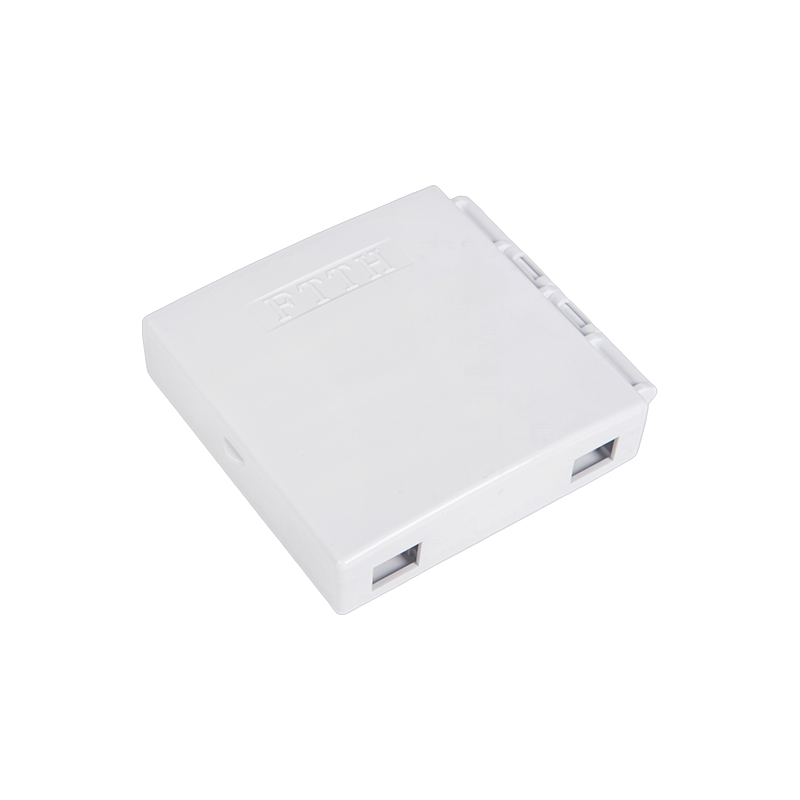

SP-N304-D Fiber Optic Terminal Box
- Configuration review
- Confirm fiber capacity, cable entry count and diameter, tray arrangement, adapter or splitter loading, sealing method, and installation environment for the exact model
- Dimensions and performance
- Confirm the final mechanical dimensions, material, ingress protection, included accessories, and available test documents against the quoted model
Selection framework
Four decisions to settle before the quotation.
Interface
Map the adapter type, simplex or duplex direction, UPC or APC polish, pigtail, dust protection, port labeling, and patch-cord route.
Installation
Review wall or desktop location, surface, cable direction, cover access, bend radius, user interaction, service access, and visual finish.
Supply configuration
Approve the SP terminal reference, adapter and pigtail loading, labels, accessories, logo, packaging, sample, and documentation.
Buyer questions
Resolve the details that change the order.
These answers help define the requirement. Final limits and evidence still depend on the exact quoted construction.
What makes a terminal box compatible with an FTTH drop cable?
Confirm the drop-cable dimensions, strength members, entry geometry, strain relief, splice or fast-connector method, adapter interface, bend control, cable exit, and installation method.
Should UPC and APC be selected from the box or the network?
Select the polish from the complete optical interface and installed network. The terminal box must be loaded with adapters and pigtails that match the planned connector and polish.
What should an outlet-box sample confirm?
Confirm the SP reference, enclosure and cover, cable entry, retention, fiber routing, adapter, pigtail, splice protection, labeling, finish, logo, accessories, and packing.
Technical resources
Use the matching specification checklist.
01 / Fiber guide
How to Size a Fiber Enclosure, Adapter Panel, and Pigtail Set
Size rack and wall fiber enclosures from incoming cable, splice method, fiber count, adapter density, connector polish, slack storage, labeling, and future capacity.
7 min read · Read guide →02 / Fiber guideChoosing OS2, OM3, or OM4 Fiber Assemblies
Choose single-mode or multimode fiber assemblies from optics, wavelength, distance, connector, loss budget, route, and migration requirements.
7 min read · Read guide →03 / Quality guideAsk for Compliance Evidence by Exact Product Model
Evaluate cabling certificates, declarations, test reports, and quality records by model, construction, standard, scope, revision, and issuing body.
6 min read · Read guide →Quotation input
Send a configuration, not only a product name.
Attach a BOQ, drawing, schedule, reference datasheet, network diagram, or approval sample whenever available.
- 01Exact SP model or photo reference
- 02Drop or indoor cable type, fiber count, entry direction, and splice requirement
- 03Adapter and polish interface, pigtail, dust protection, and port-label schedule
- 04Mounting surface, outlet position, cable exit, and service-access requirement
- 05Logo, accessories, sample, documents, quantity, packing, and destination
