Mechanical sealing, not the H-model heat-shrink build
The catalogue identifies SP-F101M as the mechanical-seal version. Compare it with SP-F101H when choosing the sealing method, and confirm the actual sealing components with the order.
SP-F101M · Fiber Closure · Dome · Splice Management · SP-F101M
SUNPU product reference
Fiber / Dome Splice Closure

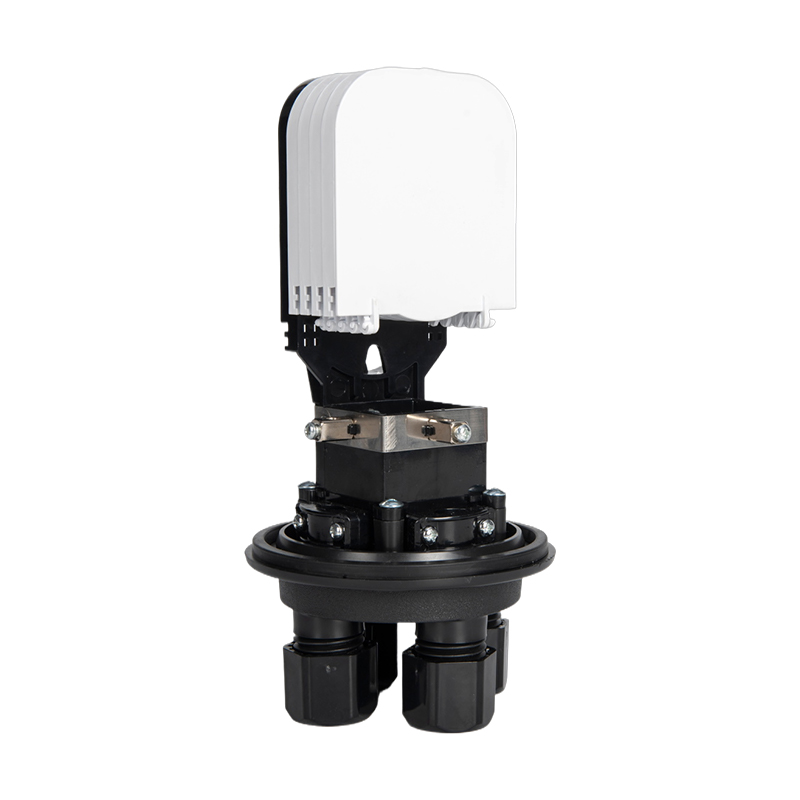

24/48-Fiber Mechanical Dome Splice Closure - SP-F101M

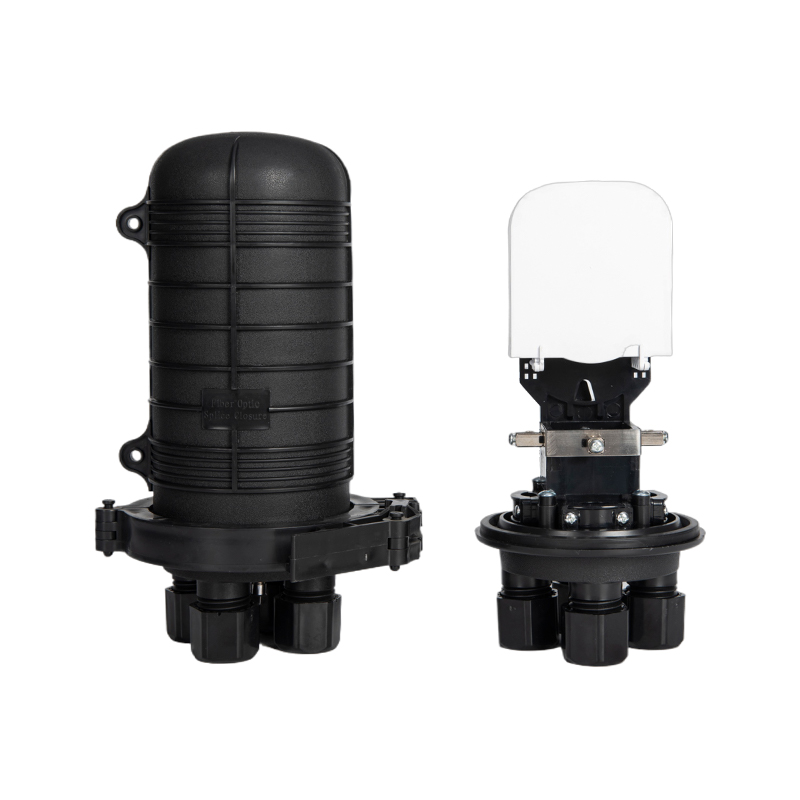

SP-F101M is a 24/48-fiber dome splice closure with a mechanical seal and a 2 inlet / 2 outlet port layout. Its PP housing measures 300 mm high × 190 mm in diameter. Select 4 × 6C or 4 × 12C trays to match the required splice count.
Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.
View source catalogue · page 3 ↗Product overview
Key product considerations

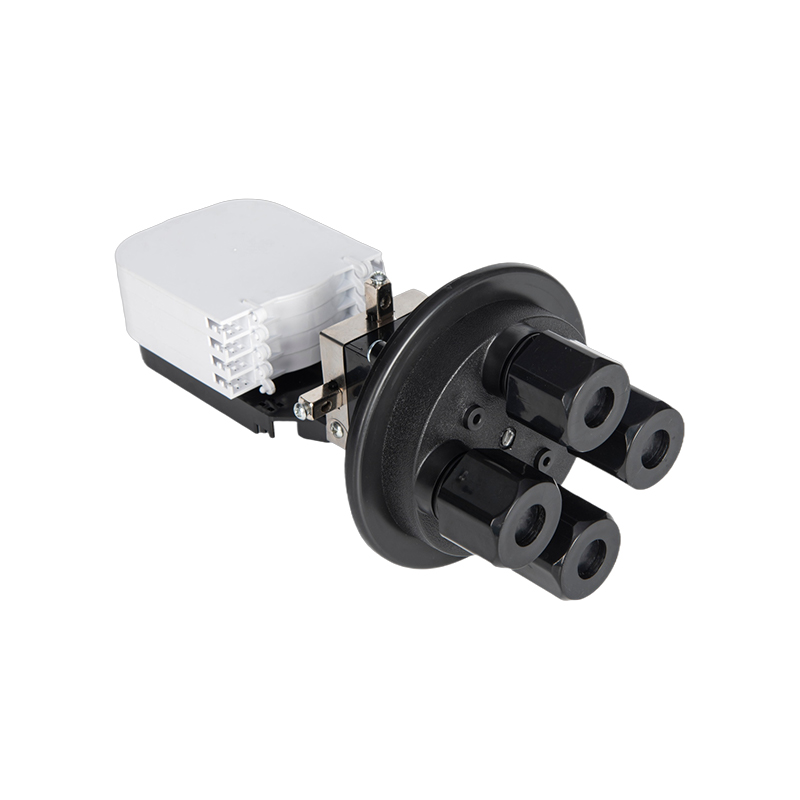

A different cable-port arrangement
SP-F101M provides 2 inlet / 2 outlet ports, while SP-F101H lists 1 inlet / 3 outlet. Match this layout to the installation cable schedule before choosing the model.

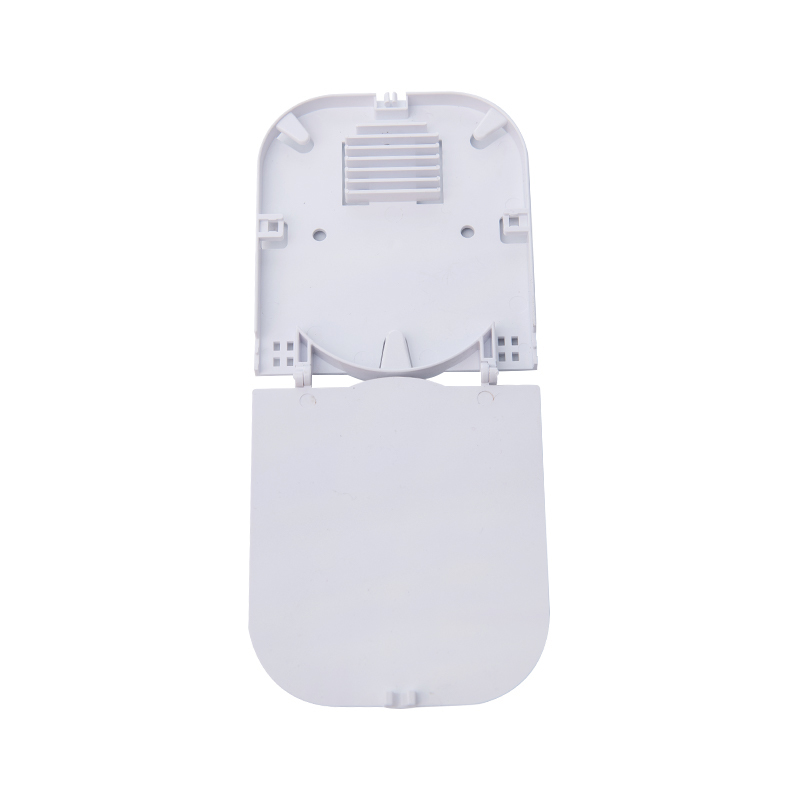

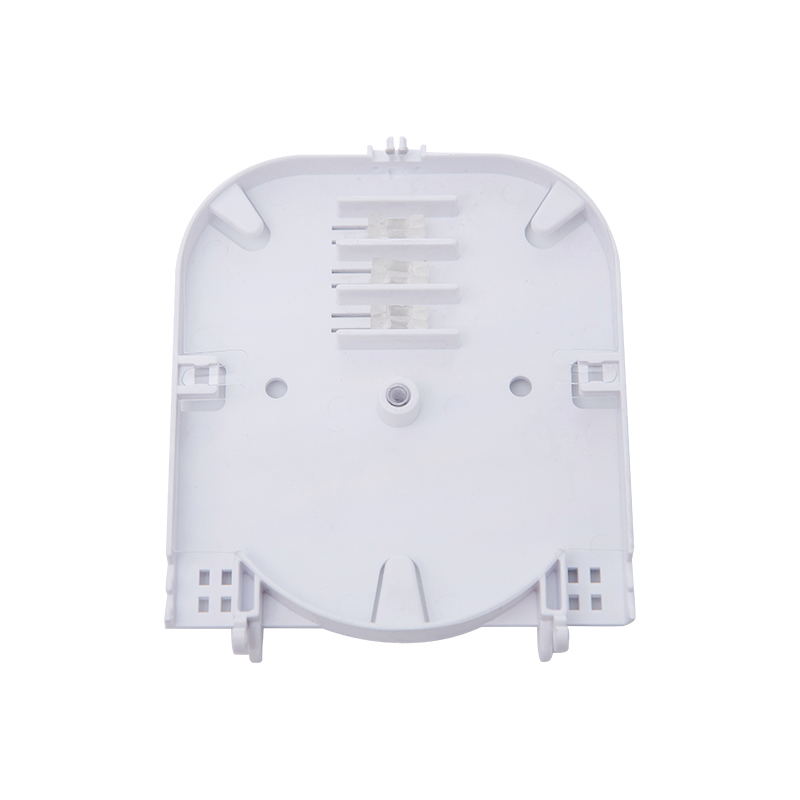

Match the tray stack to 24 or 48 fibers
Published tray builds are 4 × 6C or 4 × 12C. Both use the stated 300 mm height × 190 mm diameter PP enclosure; cable-diameter limits and the supplied mounting kit need confirmation.
Model-specific purchase brief
Use the published model as the starting point for the RFQ.
This page identifies the current SUNPU catalogue reference. The final order remains tied to the approved construction, option list, documents, quantity, packaging, and destination requirement.
- Published reference
- SP-F101M
- Product category
- Fiber / Dome Splice Closure
- Typical use
- Feeder and distribution cable joints · Aerial, pole, duct, or handhole installation · FTTH and access-network expansion
Confirm these order fields
- 24-fiber build: 4 × 6C trays
- 48-fiber build: 4 × 12C trays
- Mechanical sealing parts matched to cable diameters
- Mounting hardware, packing and documents to confirm
Factory handling
How SUNPU handles SP-F101M
The product name starts the conversation. The approved construction and order record define what is actually supplied.
Approve the exact construction
24-fiber build: 4 × 6C trays, 48-fiber build: 4 × 12C trays, Mechanical sealing parts matched to cable diameters are reviewed before the model is released for production.
Carry buyer-facing details forward
Length, color, print, labels, packaging, quantity, and destination notes stay with the order specification.
Check documents by model
Available test records and compliance documents are confirmed for the exact construction, not borrowed from a related family item.
Specifications
Core product specifications
- SUNPU product reference
- SP-F101M
- Catalogue family capacity
- 24/48-fiber optic splice closure
- Published splice-tray configuration
- 4 × 6C or 4 × 12C
- Dimensions
- 300 mm height × 190 mm diameter
- Housing material
- PP
- Cable ports
- 2 inlet / 2 outlet
- Published sealing structure
- Mechanical seal
- Catalogue evidence
- SUNPU Fiber Optic Closure and Distribution Product Catalogue 2026, pages 5–6
- Packaging basis
- Not stated in the supplied catalogue; confirm inner pack, carton and pallet requirement in the RFQ
- Test and document basis
- The supplied catalogue is the published configuration record; confirm model-specific test reports and conformity documents with the quotation
- Product family
- Dome Fiber Optic Splice Closure
Configuration options
Available product options
Use these fields to turn a broad product name into an orderable configuration.
- 0124-fiber build: 4 × 6C trays
- 0248-fiber build: 4 × 12C trays
- 03Mechanical sealing parts matched to cable diameters
- 04Mounting hardware, packing and documents to confirm
Compatibility checklist
Confirm the complete system
Check the 300 mm height × 190 mm diameter enclosure against the installation space
Allocate cables to the 2 inlet / 2 outlet SP-F101M layout
Confirm mechanical sealing parts and cable-diameter limits on the exact order drawing
Typical applications
Feeder and distribution cable joints
Aerial, pole, duct, or handhole installation
FTTH and access-network expansion
RFQ checklist
Information required for quotation
Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
- SP-F101M, mechanical seal
- 24 or 48 fibers and selected tray configuration
- Cable schedule for 2 inlet / 2 outlet
- Cable diameters, mounting and accessory requirements
- Quantity, destination, packaging and supporting documents
